SRX-90
cod. SRX-90
- KEY POINTS

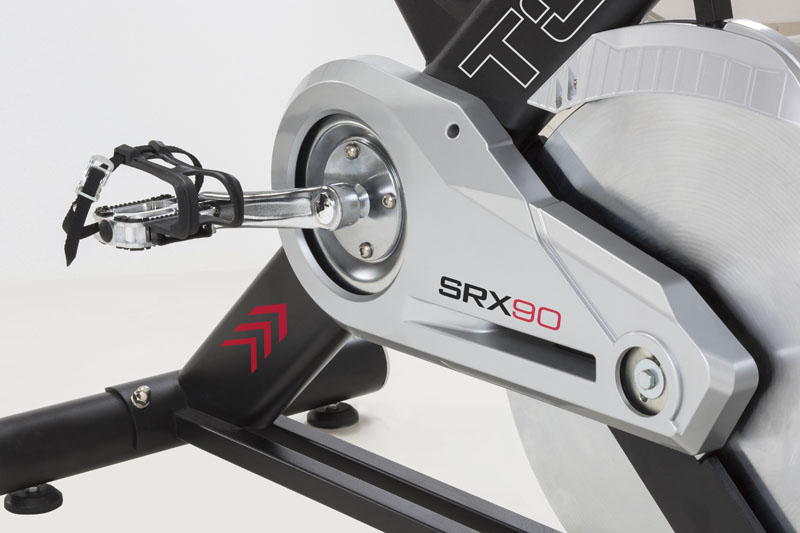

- Drive train belt - fixed gear
- Braking system long life felt pad.

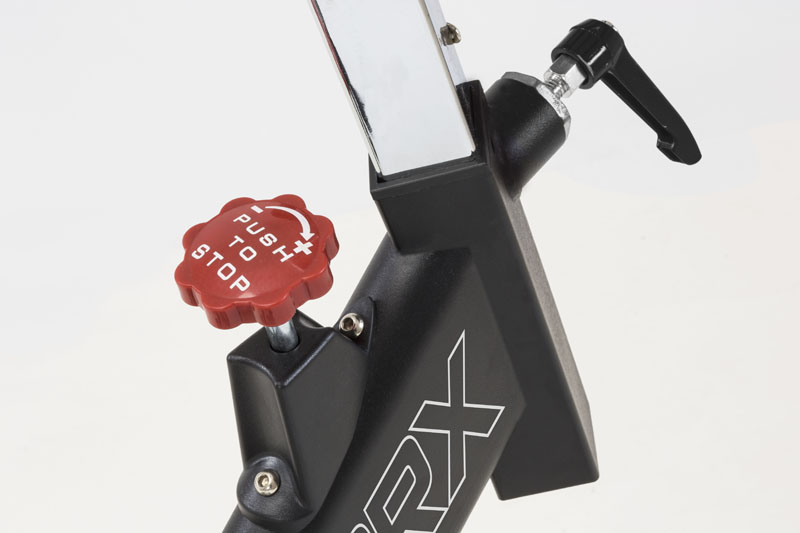

- Brake button for emergency stop.

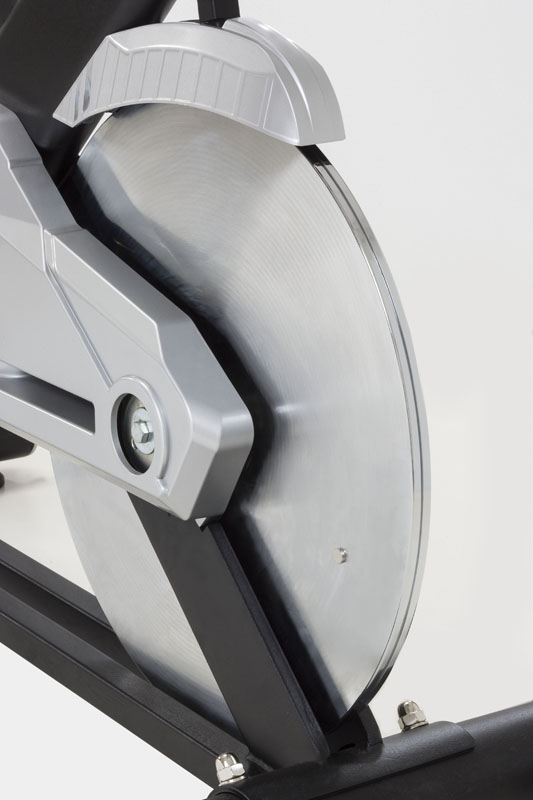

- 24 Kg flywheel system
CNC-balanced
- Built-in wireless pulse receiver - chest belt included.
Technische Daten
| Antriebssystem | belt - fixed gear |
| Bremssystem | long life felt pad. Brake button for emergency stop |
| Schwungmassensystem | 24 kg (CNC-balanced) |
| Maximales Nutzergewicht | 140 Kg |

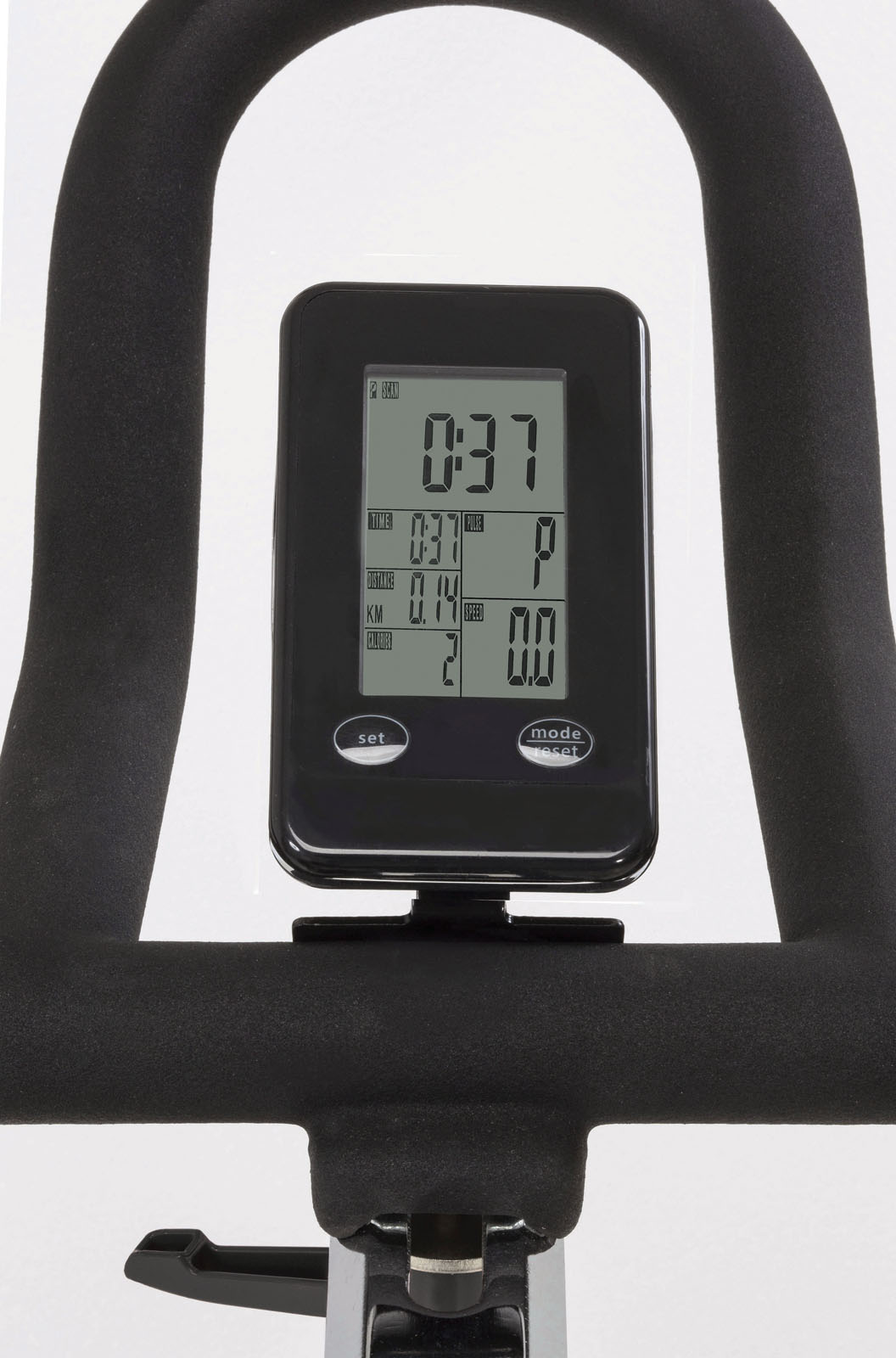

| Computer mit LCD-Anzeige | distance, time, calories, pulse, speed, RPM |

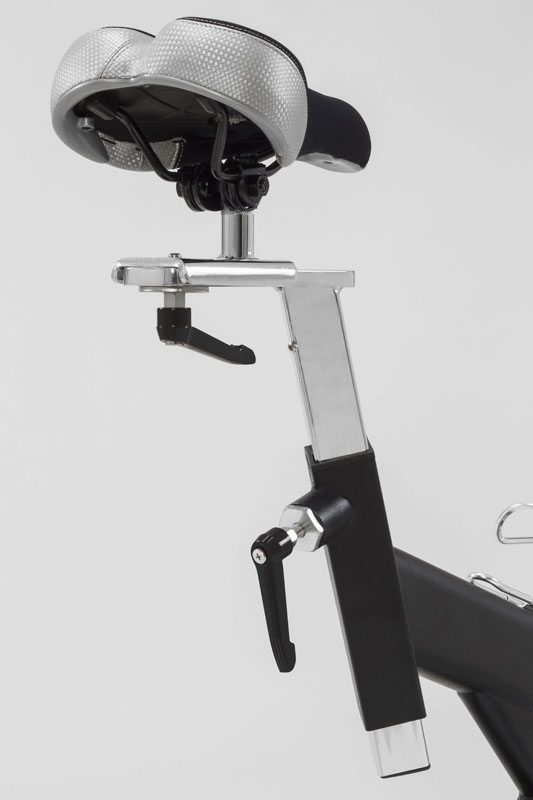

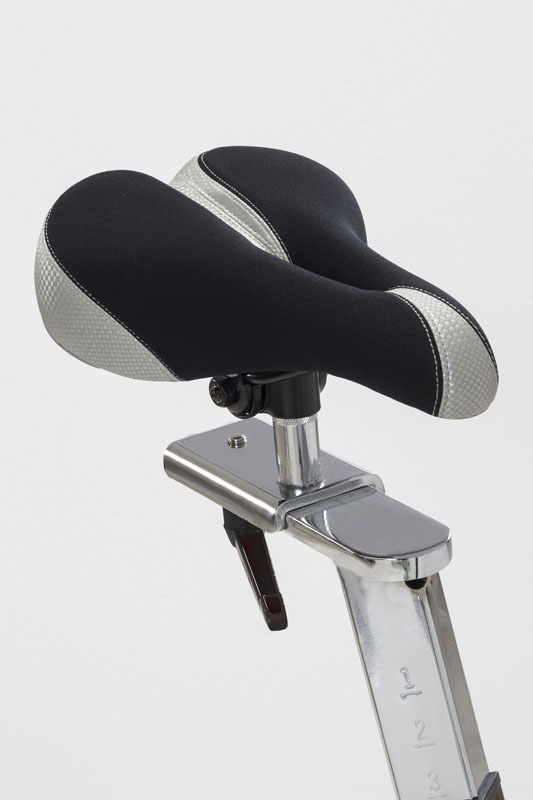

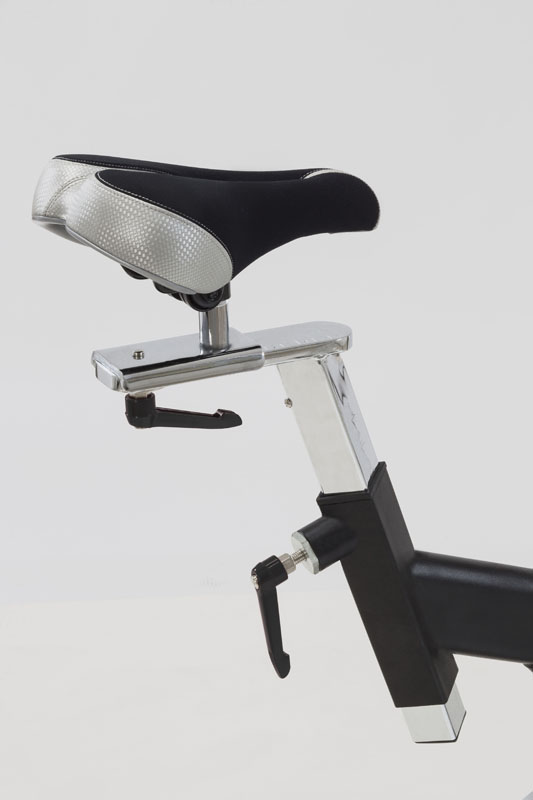

| Sitzposition | bicolour saddle with vertical and horizontal adjustment - micrometric |

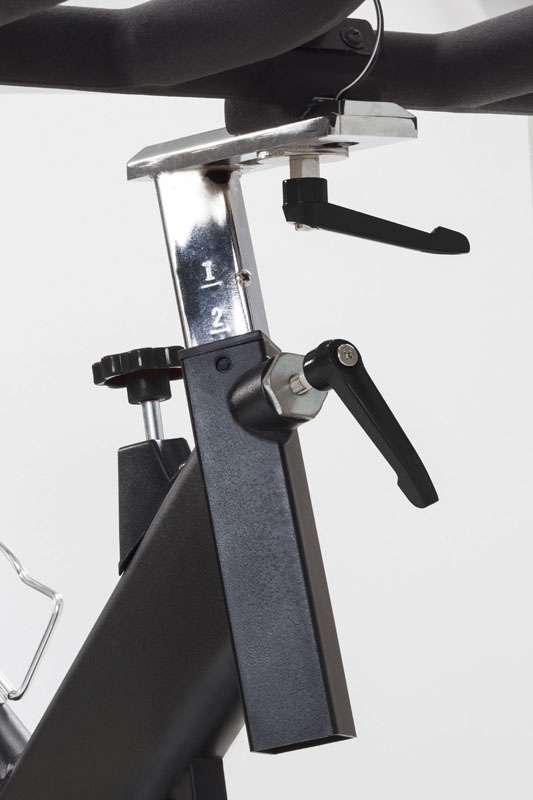

| Lenker | vertical and horizontal adjustment - micrometric |
| Lenkerhöhe * | min 90 cm, max 103.5 cm |
| Sattelhöhe * | min 76.5 cm, max 93.5 cm |
| Horizontale Lenkerverstellung * | +/- 10 cm |
| Horizontale Sattelverstellung * | min 65 cm, max 74 cm |
| Q-Faktor | Total: 19,5 cm. - Left: 9,1 cm | Right: 10,3 cm |
| Widerstandseinstellung | manual - micrometric |
| Herzfrequenz | built-in wireless pulse receiver - chest belt included |
| Transportrollen | yes |
| höhenverstellbare Bodenschoner | yes |

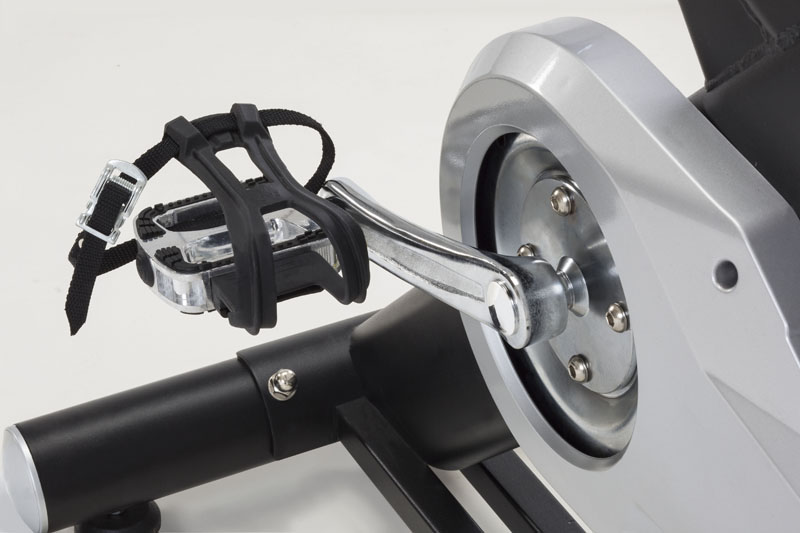

| Pedalarm | 3 pieces |

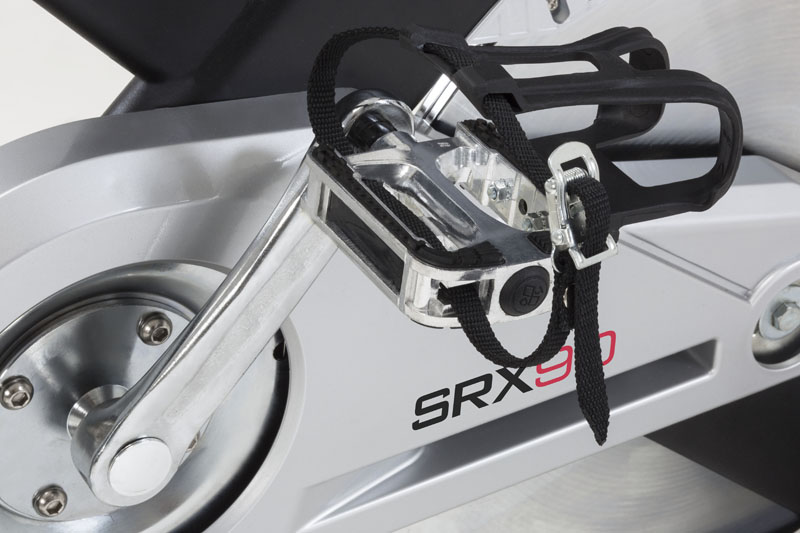

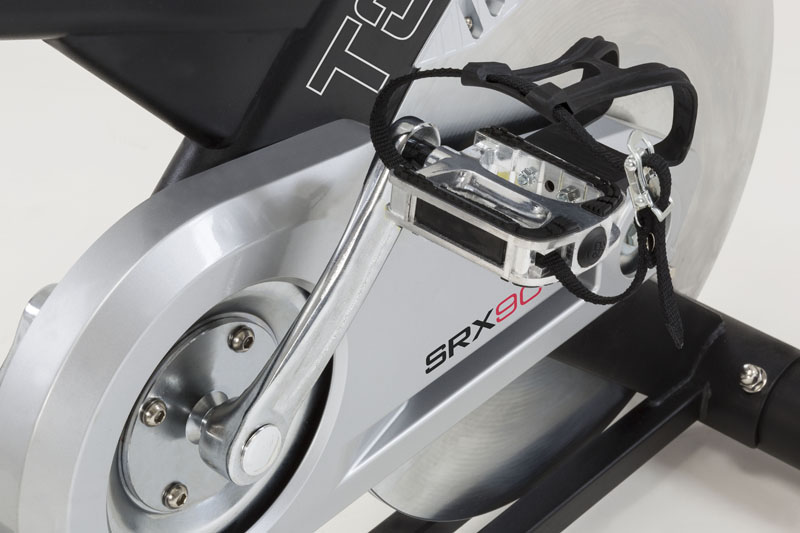

| Pedale | quick cleat retention system SPD |
| Rahmen | high-density steel |
| Farbe | heavy duty powder coating |
| Gewicht | 57 Kg |
| Aufstellmaß | 1250 x 540 x 1250 mm |
| Verpackungsgewicht | 62 Kg |
| Verpackungsmaß | 1080 x 225 x 890 mm |
| Zertifizierungen | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
