SRX-40 S
cod. SRX-40 S
- KEY POINTS
Drive train chain - fixed gear

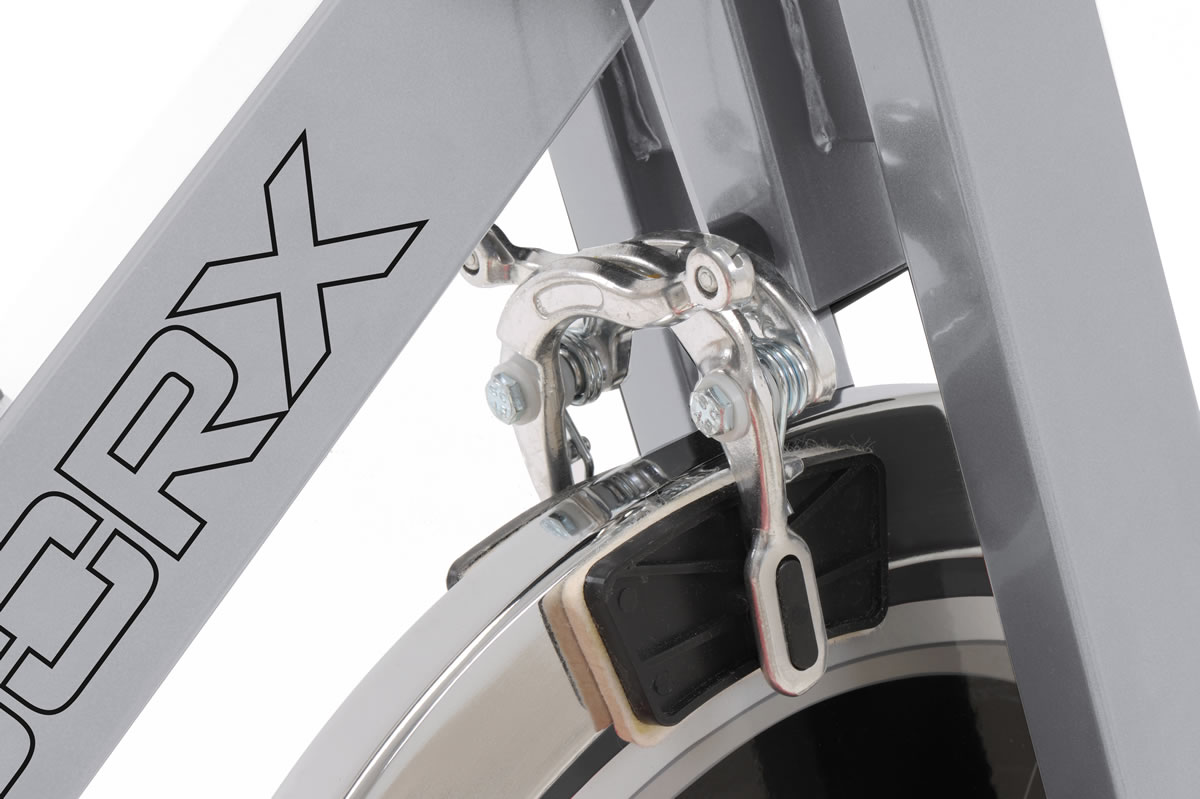

- Braking system long life felt pad.
- Brake lever for emergency stop
- 18 Kg flywheel system (balanced).
Technische Daten
| Antriebssystem | chain - fixed gear |
| Bremssystem | long life felt pad. Brake lever for emergency stop |
| Schwungmassensystem | 18 kg (balanced) |
| Maximales Nutzergewicht | 125 Kg |

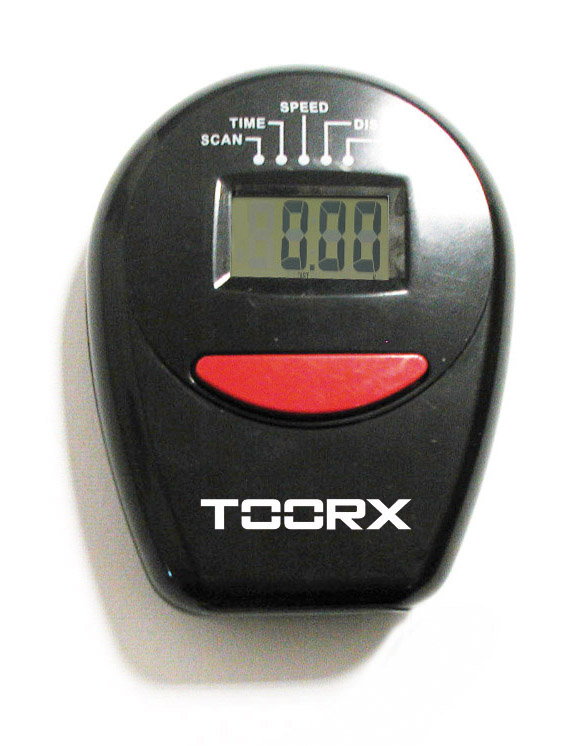

| Computer mit LCD-Anzeige | distance, time, calories, speed, scan |
| Sitzposition | bicolour saddle with vertical and horizontal adjustment |
| Lenker | vertical adjustment |
| Lenkerhöhe * | min 92.5 cm, max 104 cm |
| Sattelhöhe * | min 70 cm, max 89 cm |
| Horizontale Sattelverstellung * | min 61 cm, max 70 cm |
| Q-Faktor | Total: 17,6 cm - Left: 8,8 cm | Right: 8,8 cm |
| Widerstandseinstellung | manual - micrometric |
| Transportrollen | yes |
| höhenverstellbare Bodenschoner | yes |
| Pedalarm | 3 pieces |
| Rahmen | high-density steel |
| Farbe | heavy duty powder coating |
| Gewicht | 37 Kg |
| Aufstellmaß | 1210 x 530 x 1190 mm |
| Verpackungsgewicht | 42 Kg |
| Verpackungsmaß | 1100 x 205 x 840 mm |
| Zertifizierungen | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
