SRX-100
cod. SRX-100
- KEY POINTS

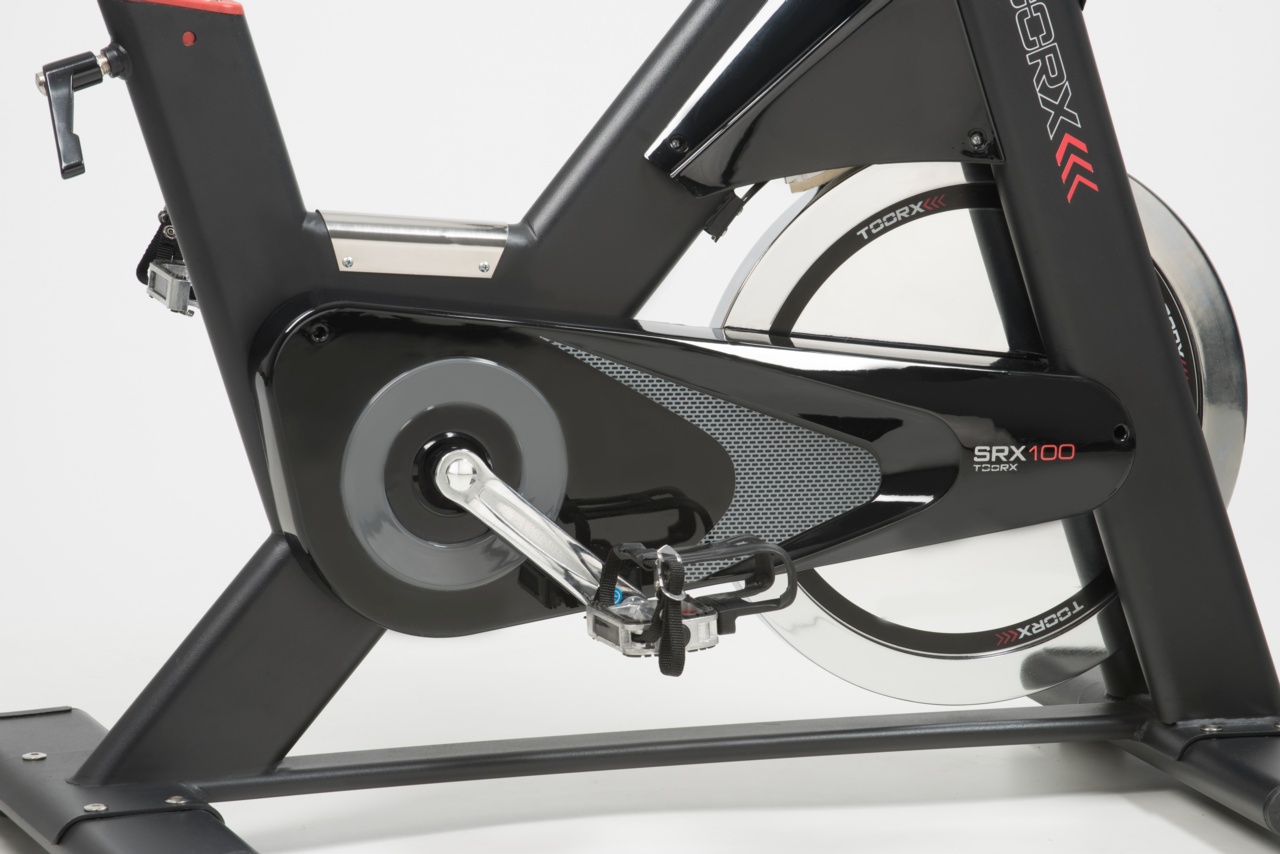

- Drive train belt - fixed gear
- Braking system long life felt pad.
- Brake button for emergency stop.
- Flywheel system 26 kg (balanced).
- Built-in wireless pulse receiver - chest belt included.
Technische Daten
| Antriebssystem | belt - fixed gear |
| Bremssystem | long life felt pad. Brake button for emergency stop |
| Schwungmassensystem | 26 kg (balanced) |
| Maximales Nutzergewicht | 150 Kg |

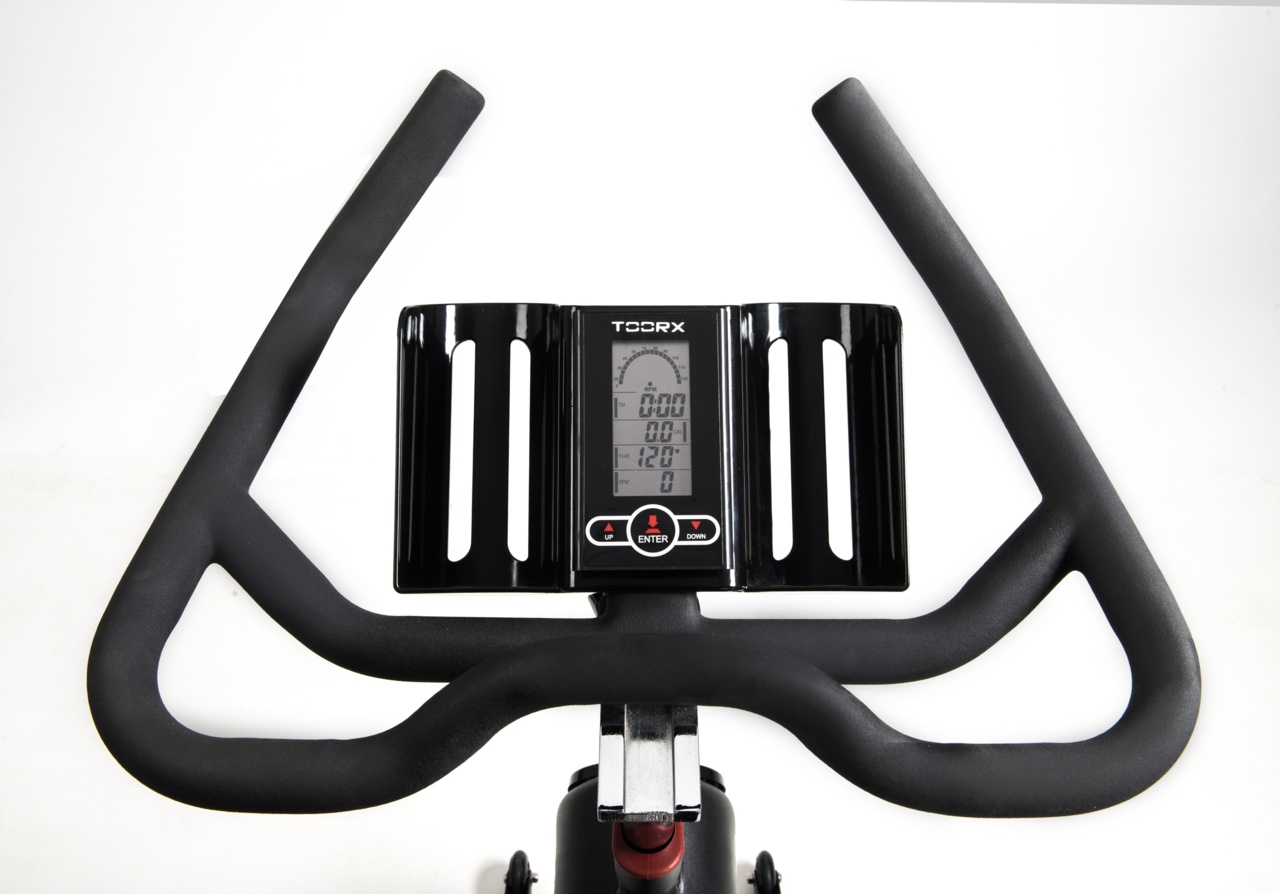

| Computer mit LCD-Anzeige | distance, time, calories, pulse, speed, odometer, scan |

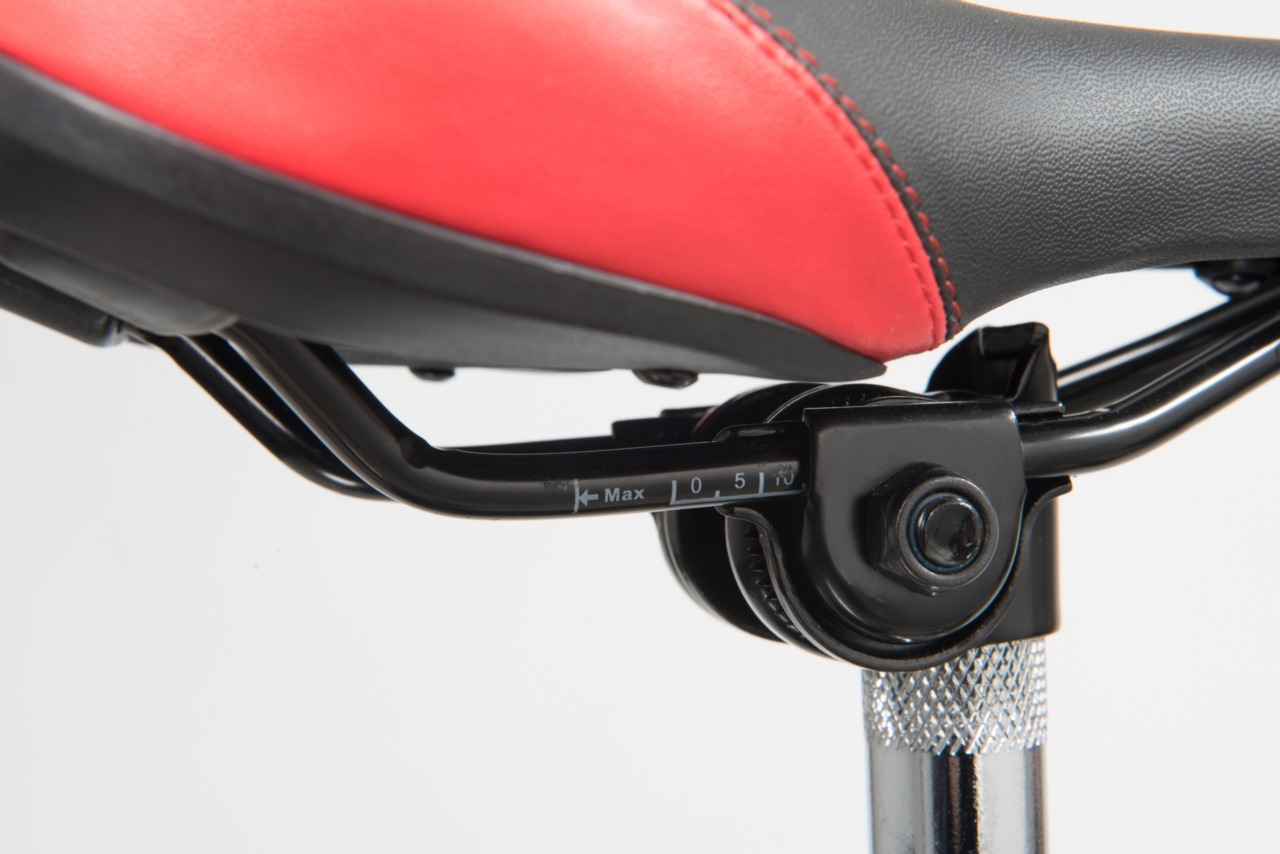

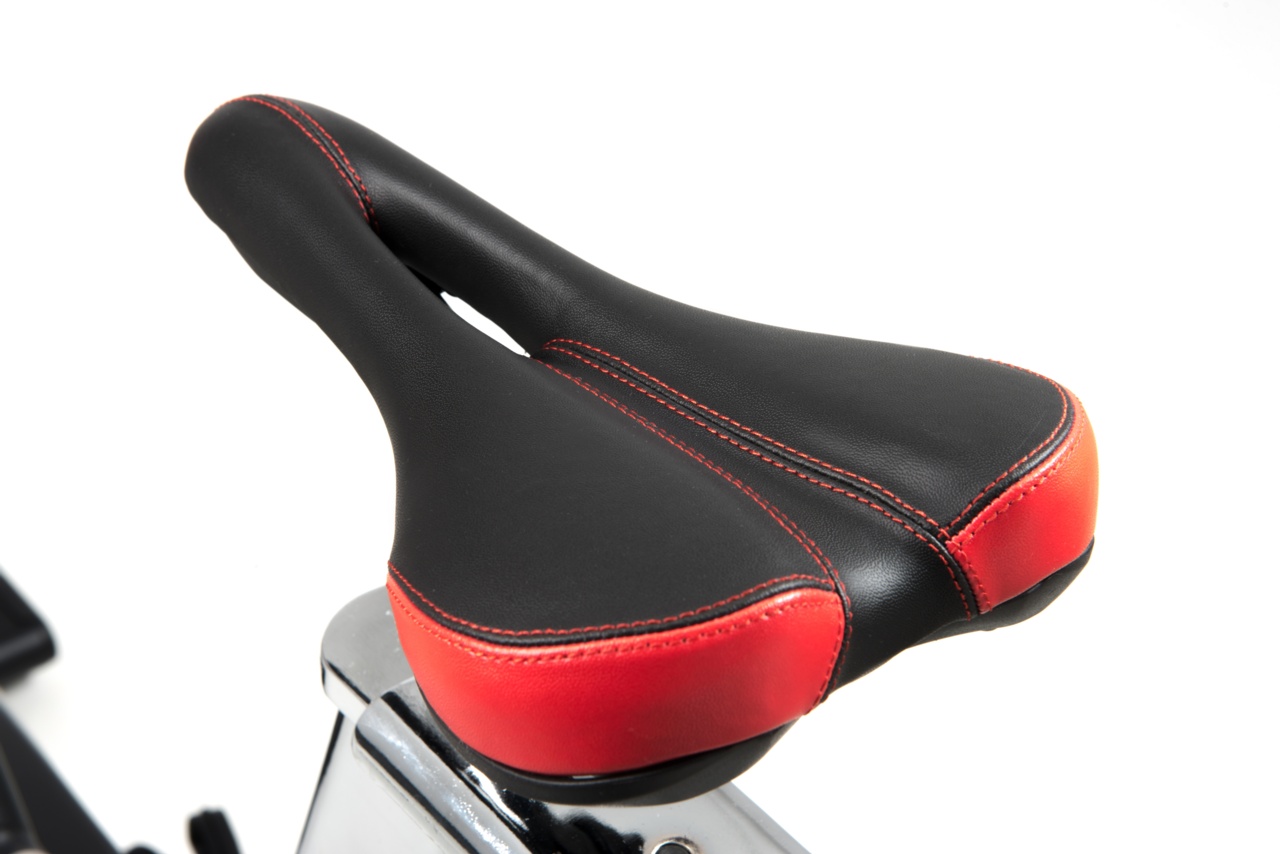

| Sitzposition | bicolour saddle with vertical adjustment and micrometric horizontal adjustment |

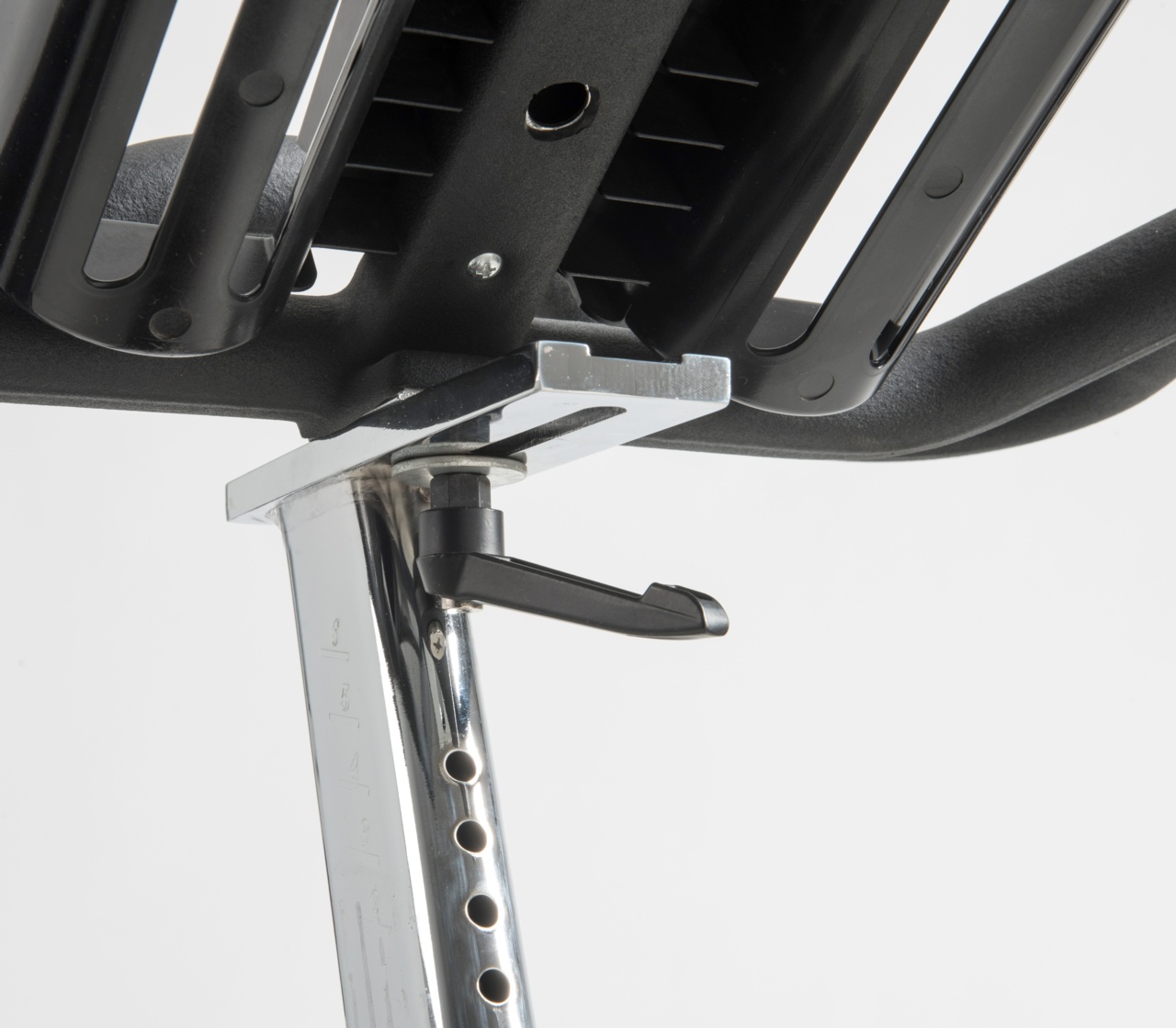

| Lenker | vertical adjustment and micrometric horizontal adjustment with double bottle holder |
| Lenkerhöhe * | min 99 cm, max 110 cm |

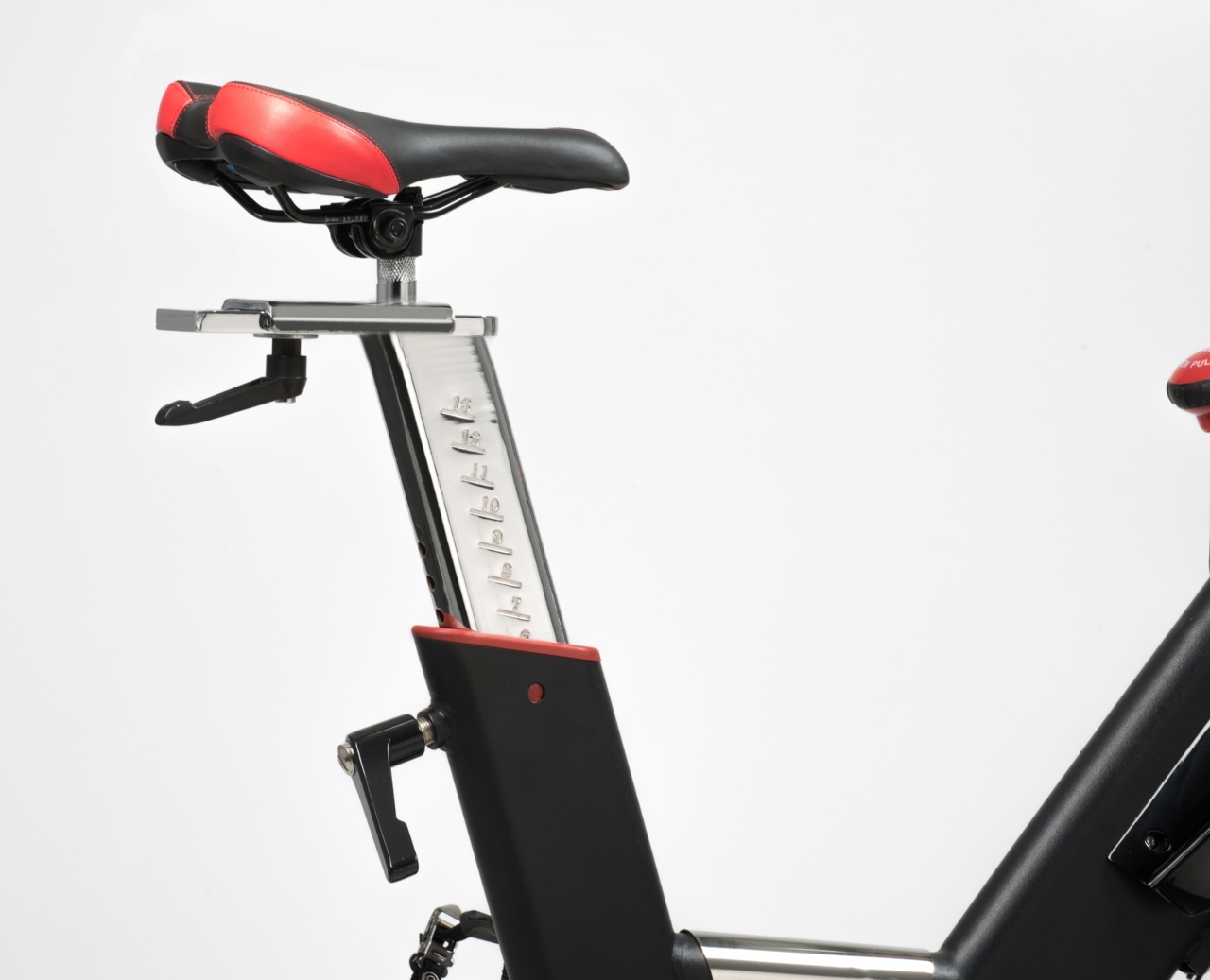

| Sattelhöhe * | min 70 cm, max 93 cm |
| Horizontale Lenkerverstellung * | +/- 8.5 cm |

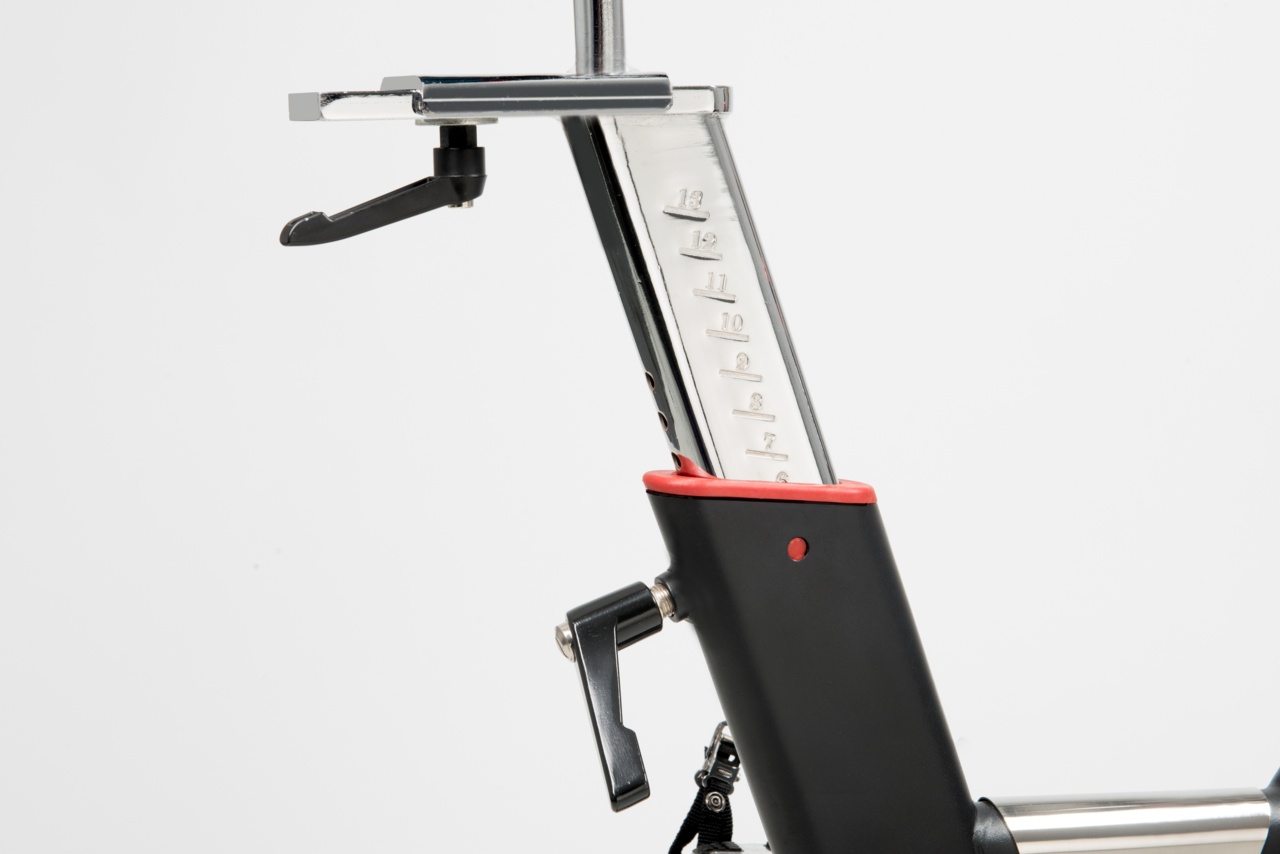

| Horizontale Sattelverstellung * | min 56 cm, max 64 cm |
| Q-Faktor | Total: 19,0 cm. - Left: 9,4 cm | Right: 9,6 cm |
| Widerstandseinstellung | manual - micrometric |
| Herzfrequenz | Built-in wireless pulse receiver - chest belt included |

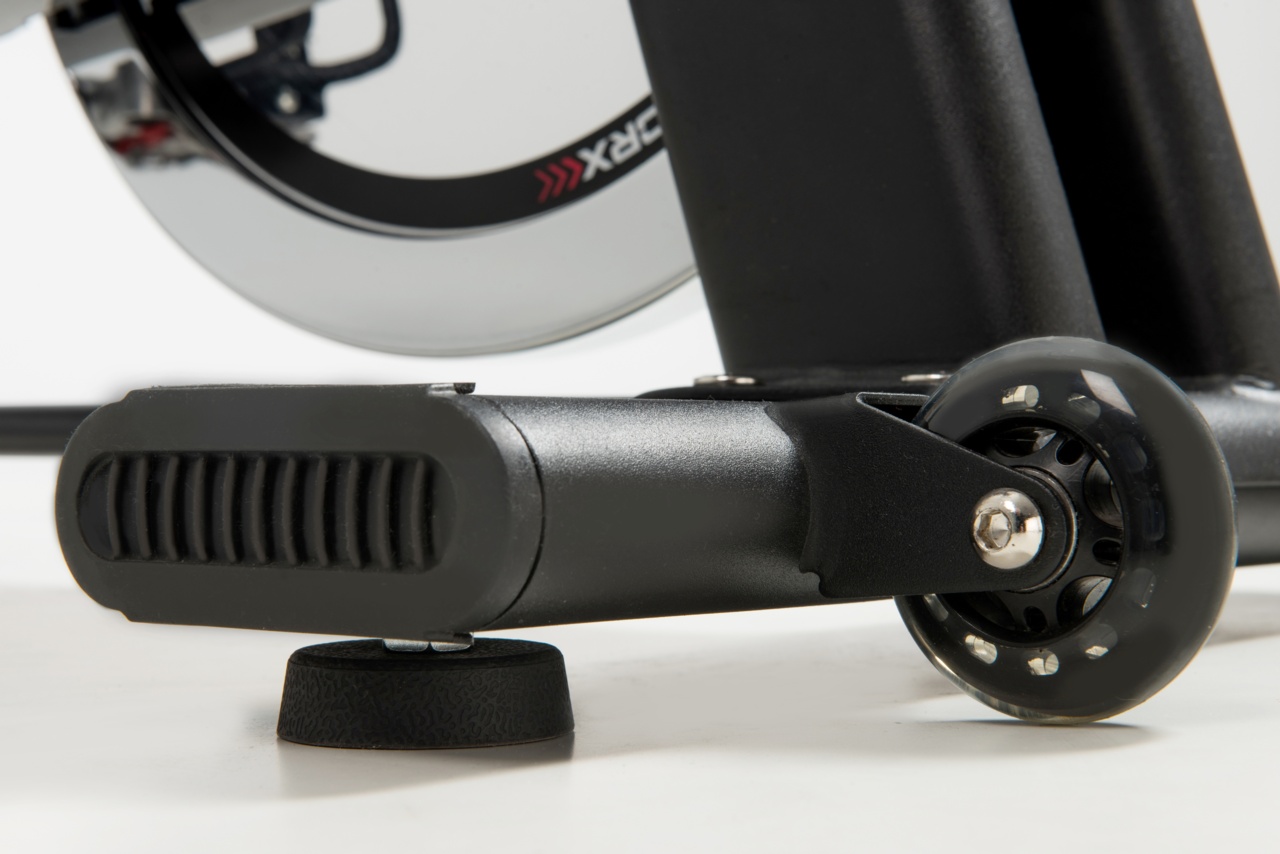

| Transportrollen | yes |
| höhenverstellbare Bodenschoner | yes |

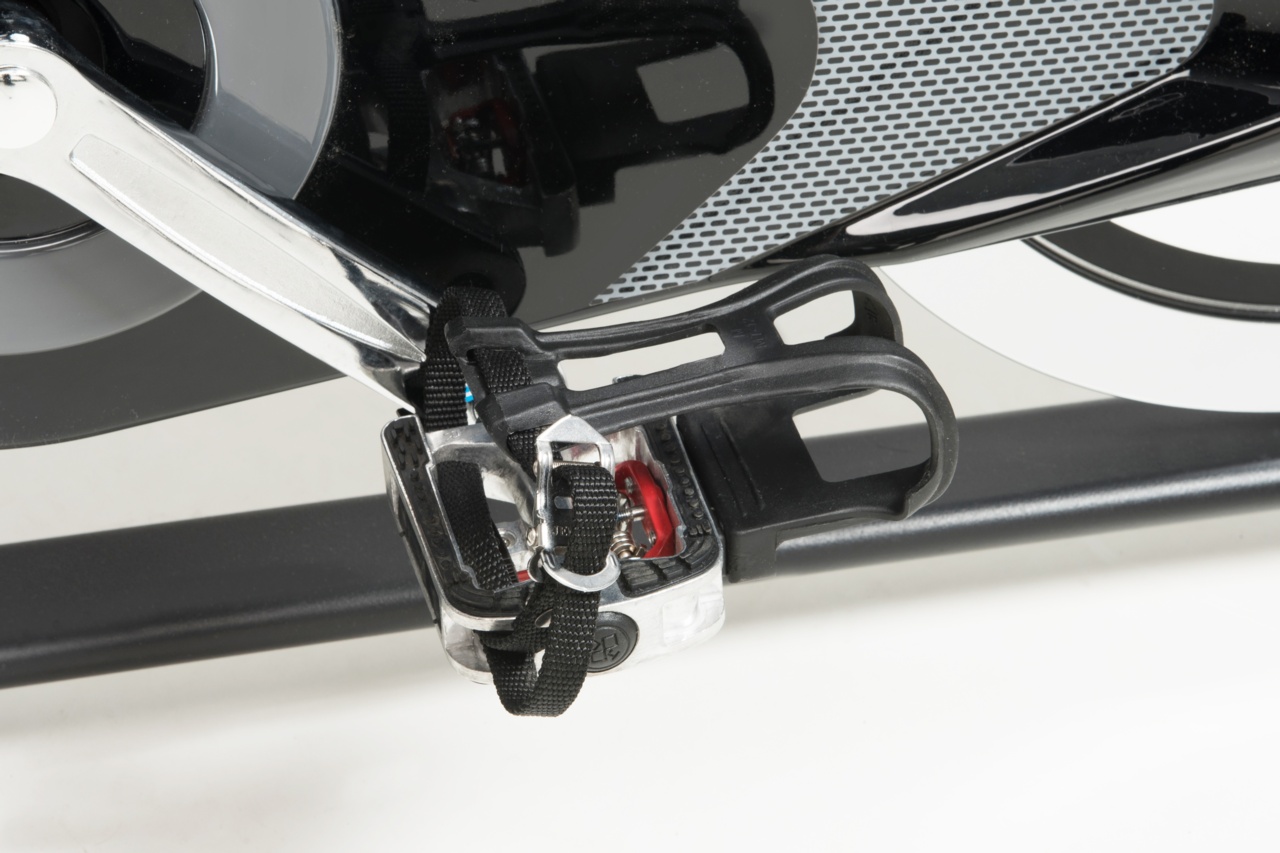

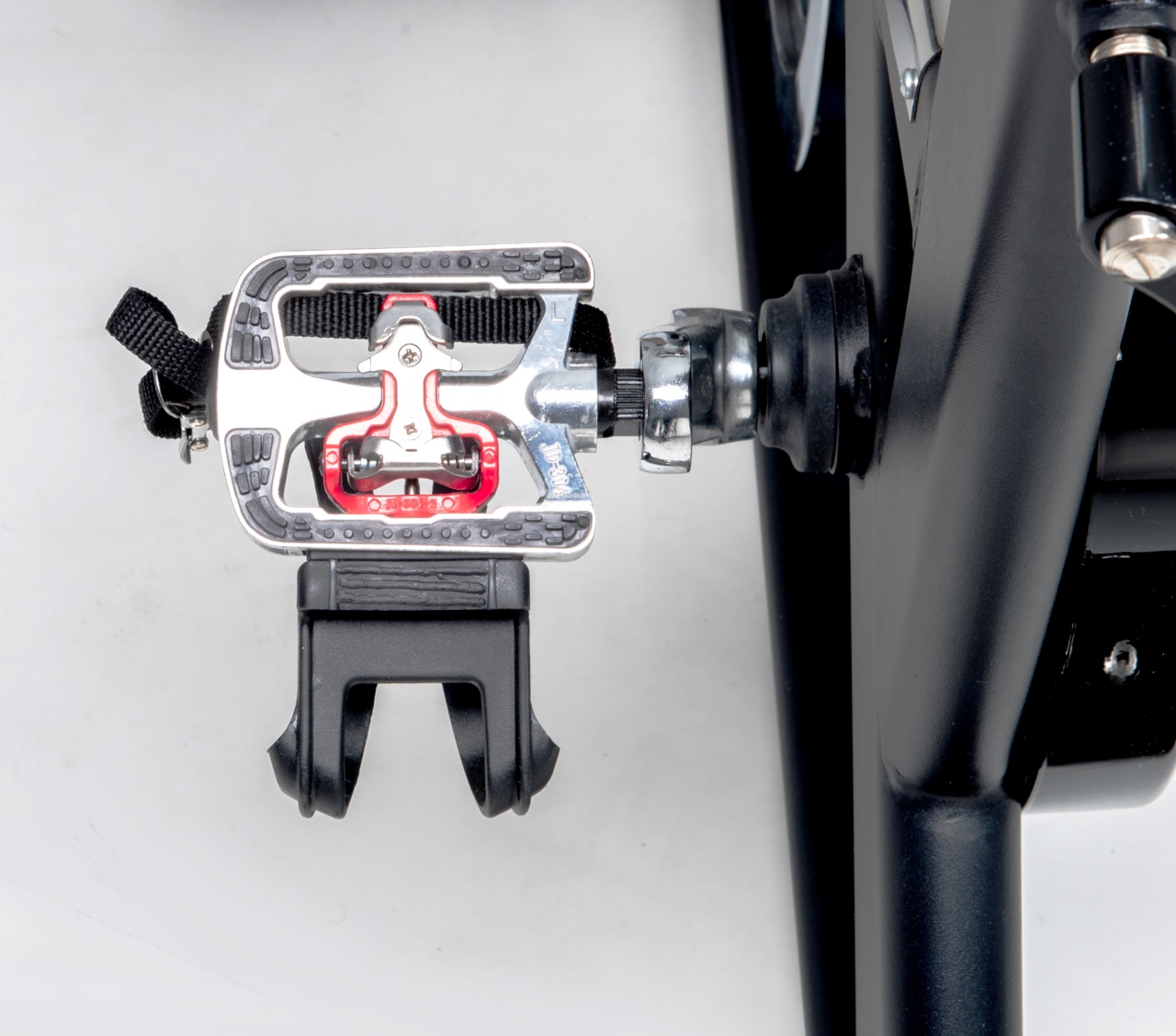

| Pedalarm | quick cleat retention system SPD |
| Pedale | a sgancio rapido SPD |
| Rahmen | high-density steel |
| Farbe | heavy duty powder coating |
| Gewicht | 65 Kg |
| Aufstellmaß | 1180 X 530 X 1320 mm |
| Verpackungsgewicht | 70 Kg |
| Verpackungsmaß | 1065 x 230 x 900 mm |
| Zertifizierungen | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
