SRX-50 S
cod. SRX-50 S
- KEY POINTS

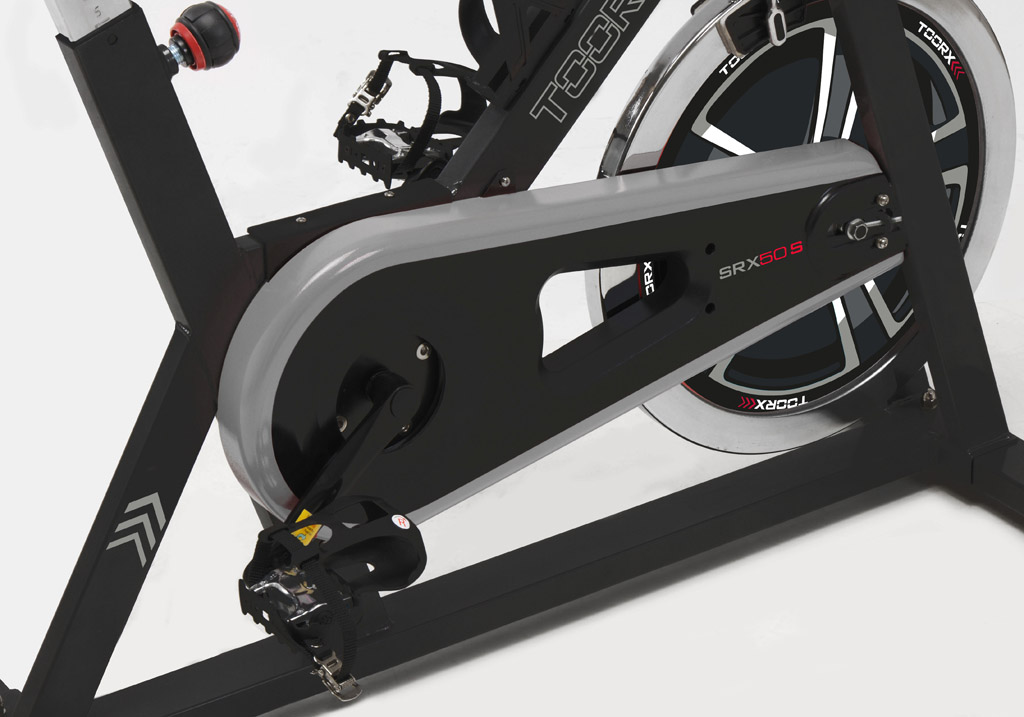

- Drive train chain - fixed gear

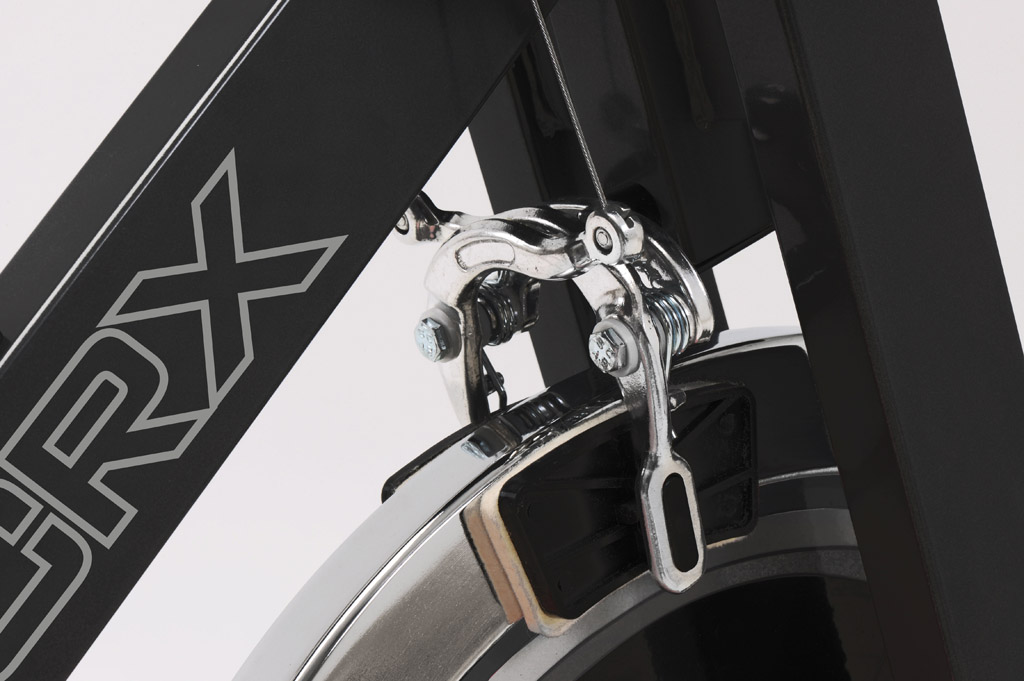

- Braking system long life felt pad.
- Brake lever for emergency stop
- 20 Kg flywheel system (balanced)
- Hand pulse
Technische Daten
| Antriebssystem | chain - fixed gear |
| Bremssystem | long life felt pad. Brake lever for emergency stop |
| Schwungmassensystem | 20 kg (balanced) |
| Maximales Nutzergewicht | 125 Kg |

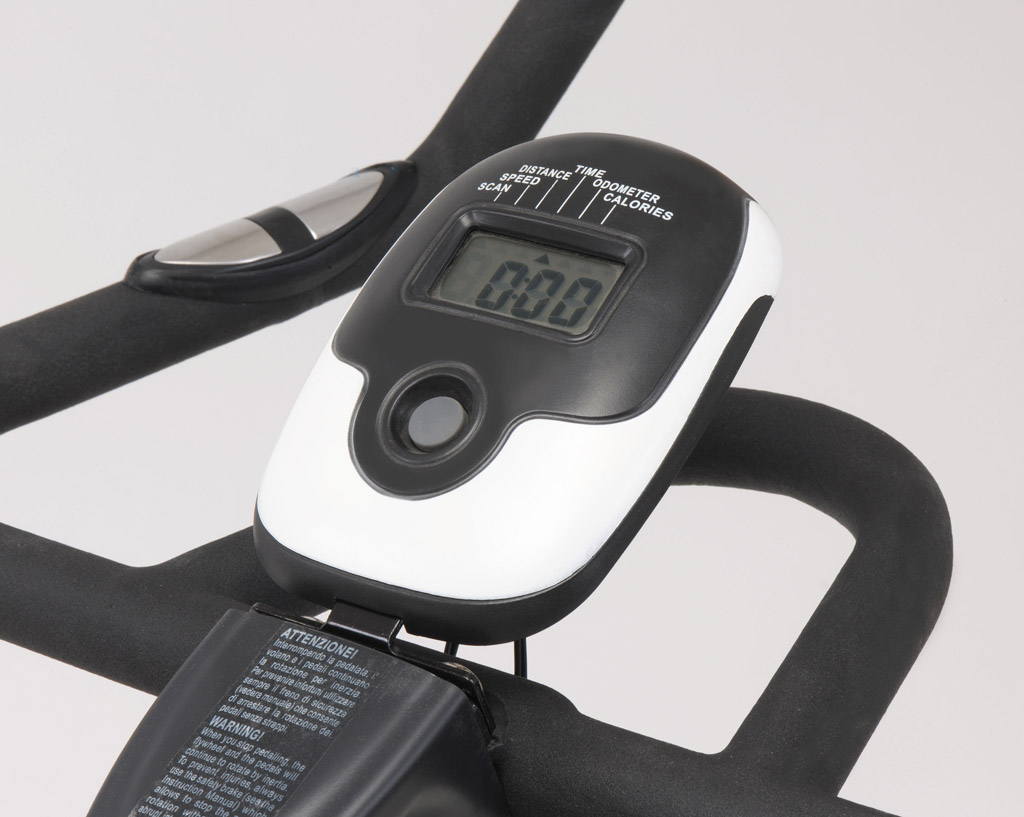

| Computer mit LCD-Anzeige | distance, time, calories, pulse, speed, odometer |

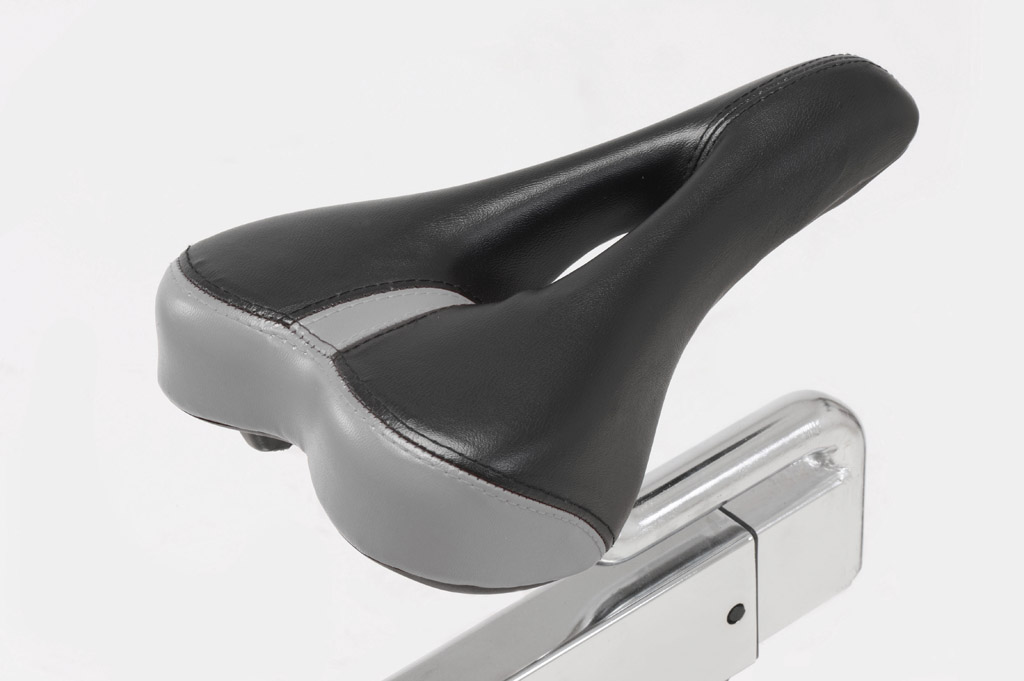

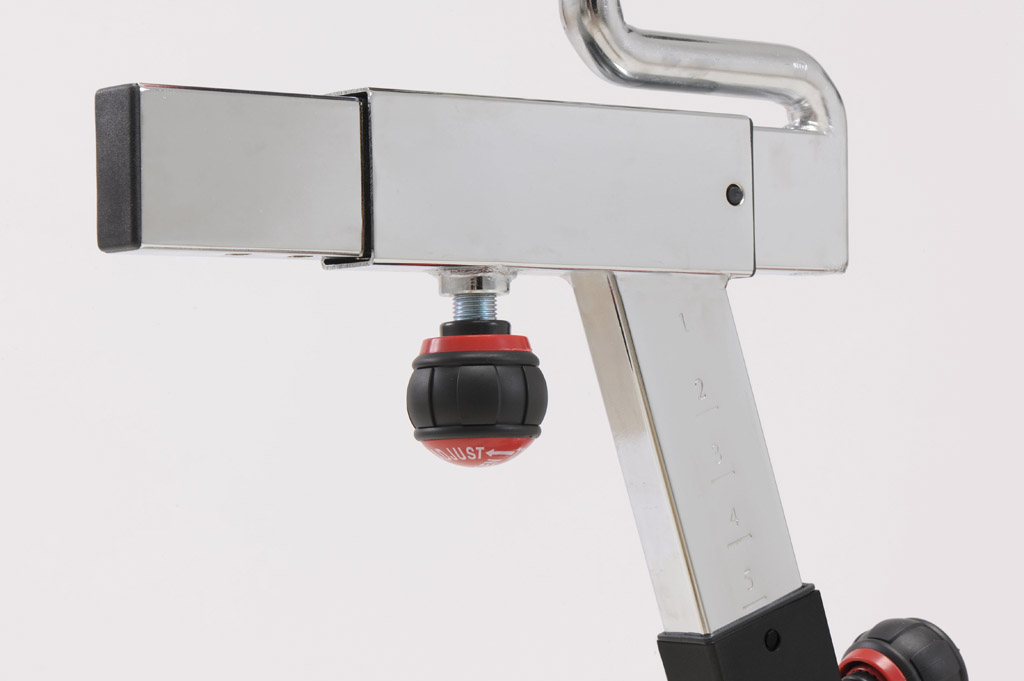

| Sitzposition | bicolour saddle with vertical and horizontal adjustment |
| Abstand Pedale-Sitz | min 79 cm, max 101 cm |
| Lenker | vertical adjustment |
| Lenkerhöhe * | min 87.5 cm, max 101 cm |
| Sattelhöhe * | min 68 cm, max 89 cm |
| Horizontale Sattelverstellung * | min 60 cm, max 73.5 cm |
| Q-Faktor | Total: 17,6 cm. - Left: 8,7 cm | Right: 8,9 cm |
| Widerstandseinstellung | manual - micrometric |

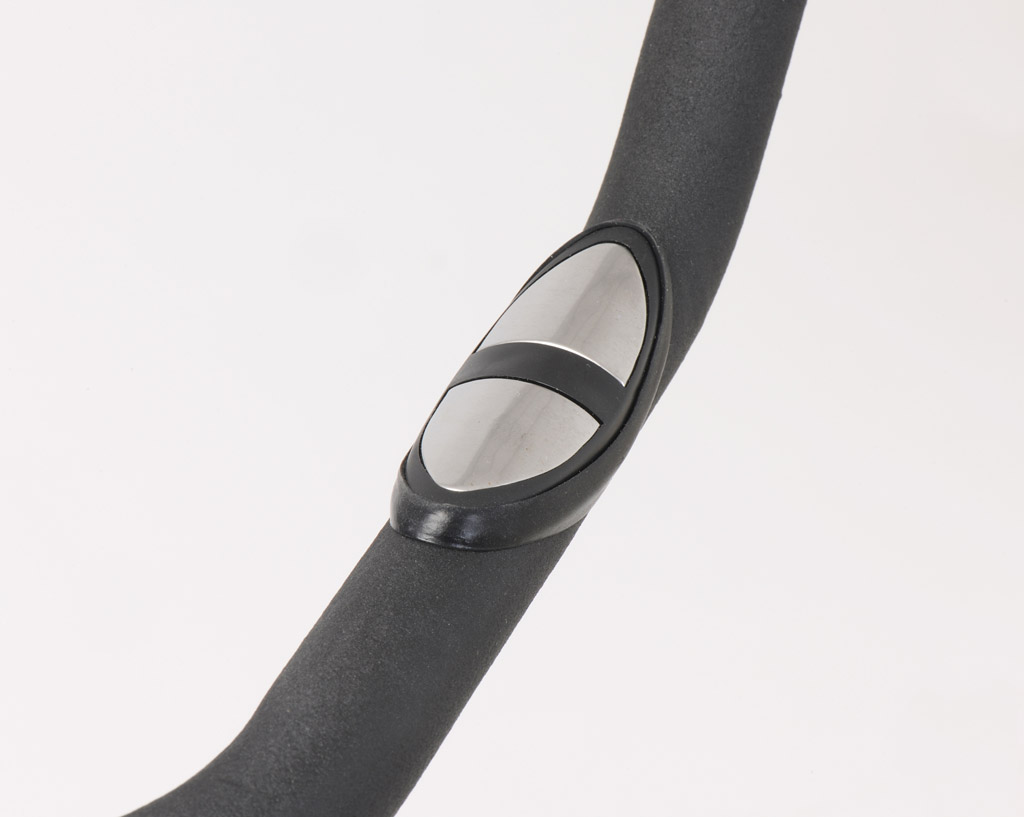

| Herzfrequenz | hand pulse |
| Transportrollen | yes |
| höhenverstellbare Bodenschoner | yes |

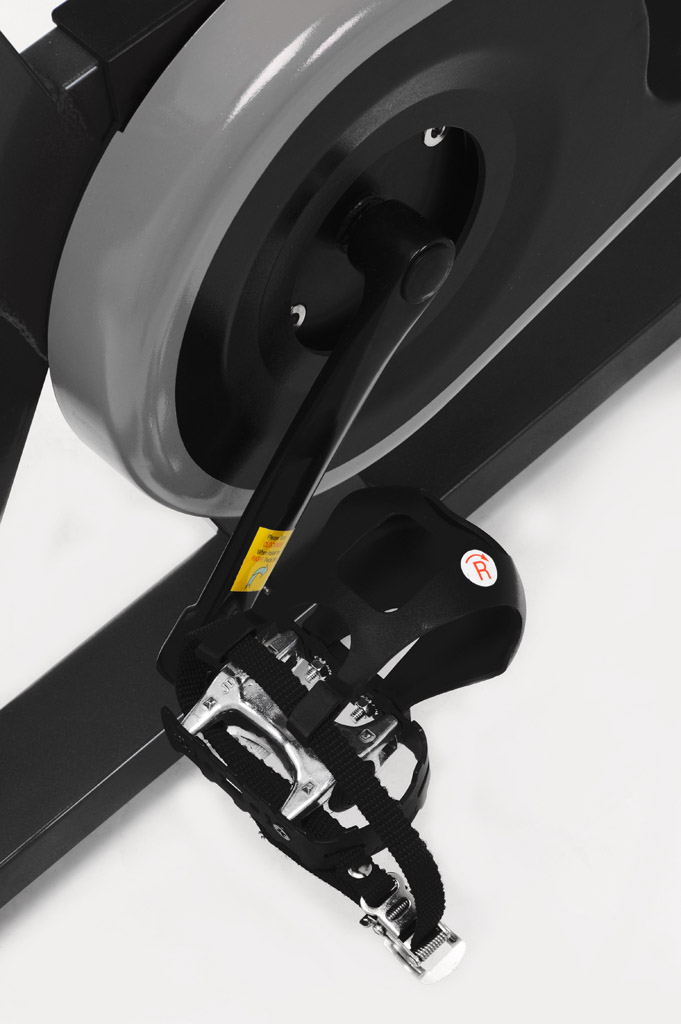

| Pedalarm | 3 pieces |
| Rahmen | high-density steel |
| Farbe | heavy duty powder coating |
| Gewicht | 41 Kg |
| Aufstellmaß | 1070 x 510 x 1150 mm |
| Verpackungsgewicht | 46 Kg |
| Verpackungsmaß | 1080 x 195 x 840 mm |
| Zertifizierungen | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
