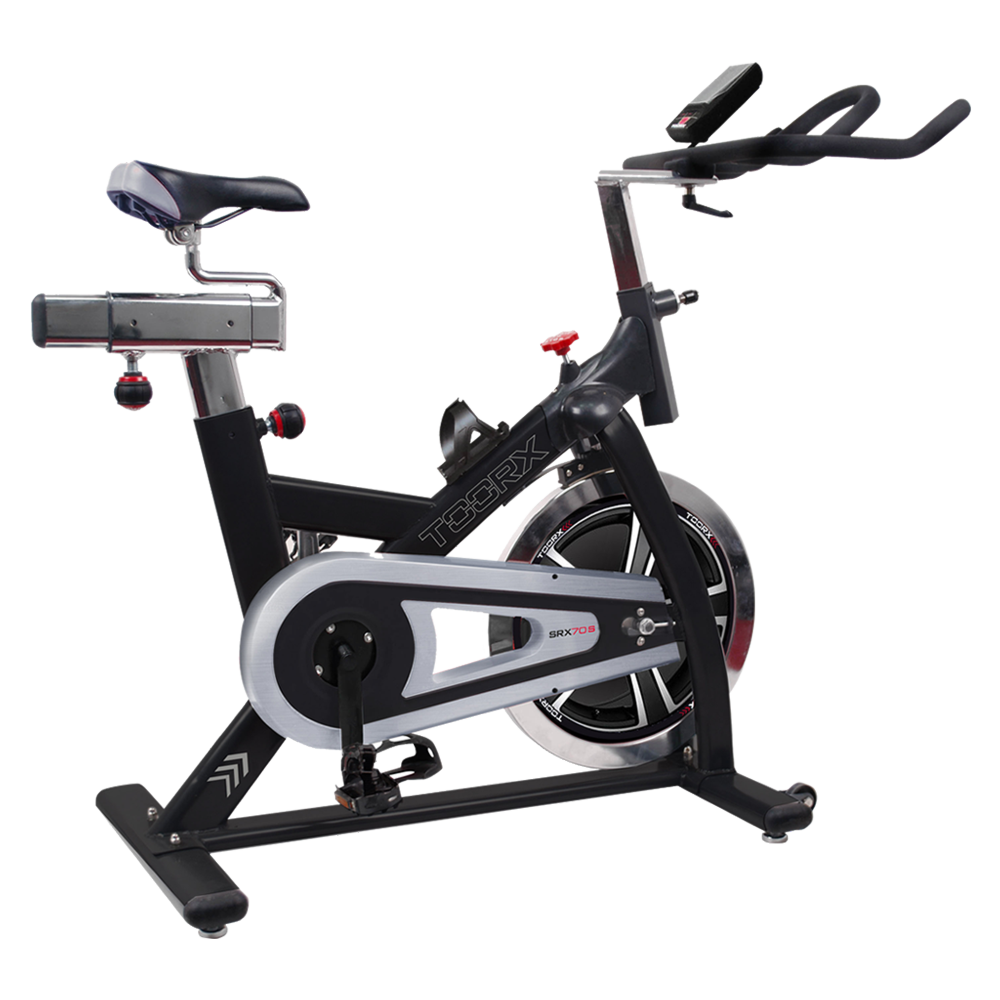

SRX-70 S
cod. SRX-70 S
- KEY POINTS
- Drive train belt - fixed gear
- Braking system long life felt pad.
- Brake button for emergency stop.

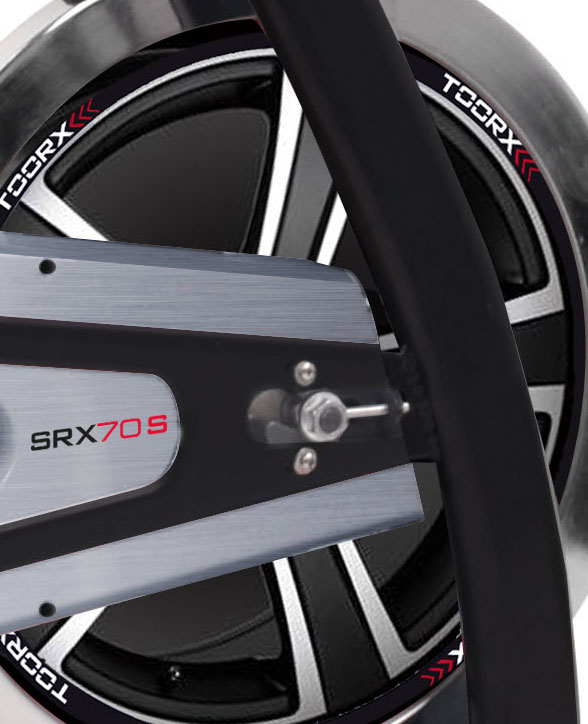

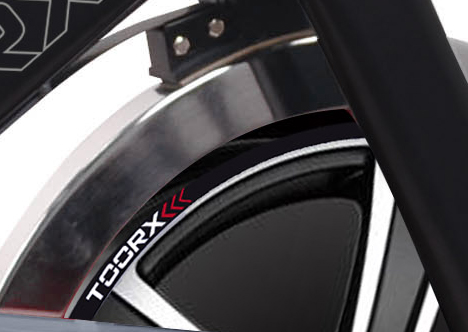

- 22 Kg flywheel system (balanced)
- Built-in wireless pulse receiver - hand pulse.
Technische Daten
| Antriebssystem | belt - fixed gear |
| Bremssystem | long life felt pad. Brake button for emergency stop |
| Schwungmassensystem | 22 kg (balanced) |
| Maximales Nutzergewicht | 125 Kg |

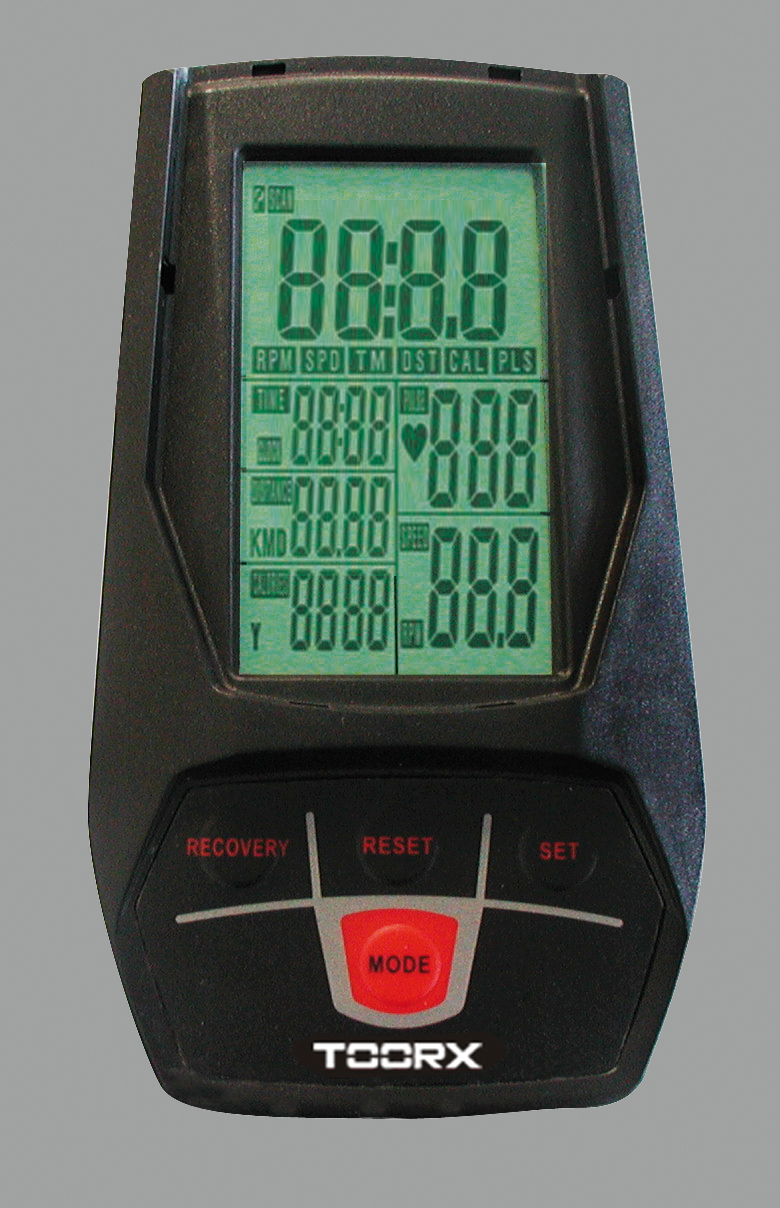

| Computer mit LCD-Anzeige | distance, time, calories, pulse, speed, odometer, RPM |
| Sitzposition | bicolour saddle with vertical and horizontal adjustment |
| Lenker | vertical and horizontal adjustment - micrometric |
| Lenkerhöhe * | min 88.5 cm, max 104 cm |
| Sattelhöhe * | min 70 cm, max 89 cm |
| Horizontale Lenkerverstellung * | +/- 10 cm |
| Horizontale Sattelverstellung * | min 61 cm, max 70 cm |
| Q-Faktor | Total: 17,7 cm. - Left: 8,3 cm | Right: 9,4 cm |
| Widerstandseinstellung | manual - micrometric |
| Herzfrequenz | hand pulse. Built-in wireless pulse receiver |
| Transportrollen | yes |
| höhenverstellbare Bodenschoner | yes |
| Pedalarm | 3 pieces |
| Rahmen | high-density steel |
| Farbe | heavy duty powder coating |
| Gewicht | 47 Kg |
| Aufstellmaß | 1210 x 540 x 1215 mm |
| Verpackungsgewicht | 52 Kg |
| Verpackungsmaß | 1100 x 250 x 850 mm |
| Zertifizierungen | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
